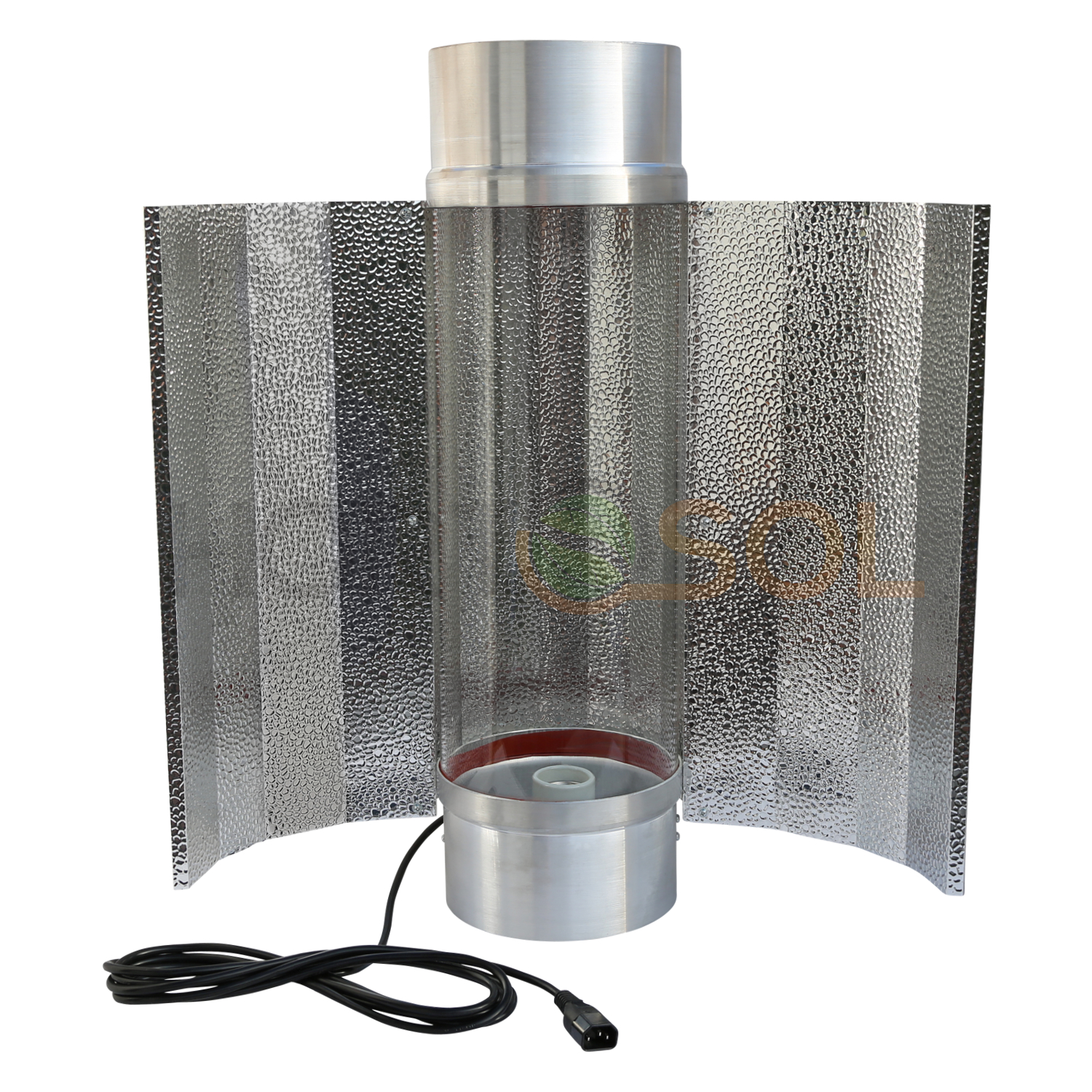

HPS/MH bulbs reach operating temperatures over 300° Celsius and as a consequence the ambient temperature is raising too much. To avoid this heat problem HORTOSOL specifically designed the Cooltube reflector for the use of HPS/MH lamps. At this light fixture the bulb is installed in a glass tube, which will be connected with a ventilation system. Thanks to this heat dissipation, the lamp can be positioned closer to the plants, with the result of higher light output and depth effect.
On the basis of the hammered reflector with high reflection, the plants are illuminated evenly and very efficiently. The removable reflector allows vertical use in 360° mode, too.
For an easy installation, the reflector comes with integrated eyelets for attaching hanging equipment like Easy Rolls or chains. All Cooltubes from HORTOSOL are already assembled with a 4m long power cable with IEC-plug for connection to the ballast.
Dimension: 69x68x24 cm (LxWxH)
Connection-Ø: 200 mm – (8″)
Material of glass tube: Borosilicate glass
Thickness of glass tube: 3.5 mm
Material of reflecting sheet: Aluminium
Material of connecting flange: Aluminium
Fixing: integrated eyelets for attaching
Lamp holder: E40 – Giant Edison Screw (GES)
Power plug: 4m IEC cable for connection to a ballast
Usage: HPS, MH – (additional ballast required!)
Maximum load capacity: 1500 g
Maximum power: 1000 Watt
For a good light efficiency a high quality reflector is recommended. Please use a reflector with high light reflexion. This will focuse the light and illuminate your plants very well and efficiently. We can recommend all reflectors from the brand HORTOSOL.
Please remove the protective film before using. While installation the lamp the power plug must always be unplugged. Screw in the lamps carfully and do not handle them by the glass.
Packing: 28x26x74 cm
Net weight: 5.0 kg
Gross weight: 6.5 kg
